Minilader nieuw Dragon Loader ZL12F ZL12F

1.2T wheel loader, 1.2ton wheel loader, 1.2 ton wheel loader, 1.2T compact wheel loader, 1200kg loaders, mini wheel loaders, new wheel loader, 4WD wheel loader, 1.2T CE wheel loader, 1.2T front wheel loader, 1.2 Ton front loader, 1.2 Ton small loader, 1.2 Ton mini loader, 1.2 Ton compact loader, 1.2Ton front end loader, 1.2 Ton small front loader, 1.2 T mini front loader, 1200kg front loader, 1200kg small loader, 1200kg mini loader, 1200kg compact loader, 1200kg front end loader, 1200kg small front loader, 1200kg mini front loader, CE approved 1.2T front wheel loader, CE certified 1.2 ton front end wheel loader, 1.2 ton wheel loader with CE mark, CE front loader with 1.2T capacity, CE front end loader with 1.2 ton capacity, CE small loader with 1200kg capacity

Applications:
CE Certified Wheel loader ZL12F is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. to shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. This 1.2T CE marked wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
Features:

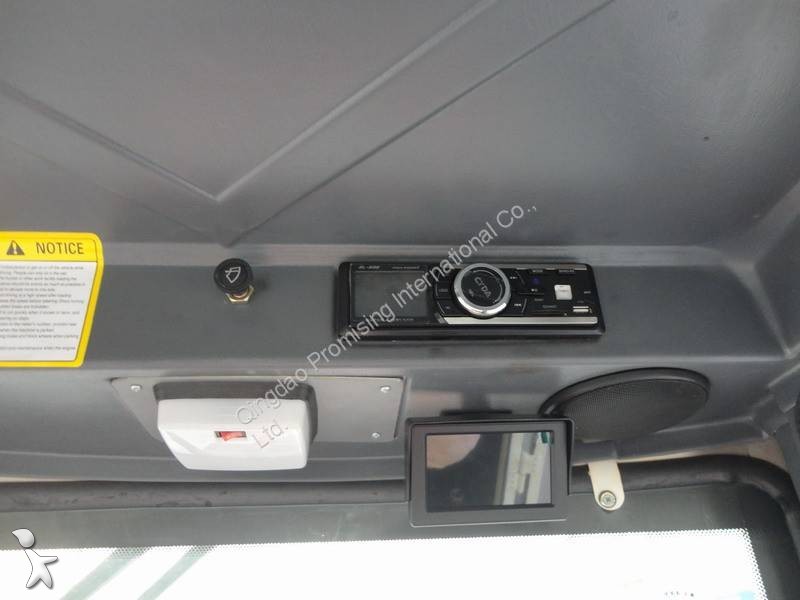

enclosed cab with comfortable seat, heater, radio, fan, fire extinguisher, reversing camera, joystick, optional hydraulic quick hitch, multiple optional loader attachments, top beacon
1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables this 1.2 Ton wheel loader with CE mark to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the 1.2T wheel loader have good off-road performance, trafficability and more traction;
4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
5. Using 12-16.5-12PR ultra-wide tires to increase the stability of the whole machine and the service life of tire;
6. Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 wheels;
7. This CE approved 1.2T wheel loader adopts ZL240 integrated torque converter, and the whole machine is fully hydraulic transmission;

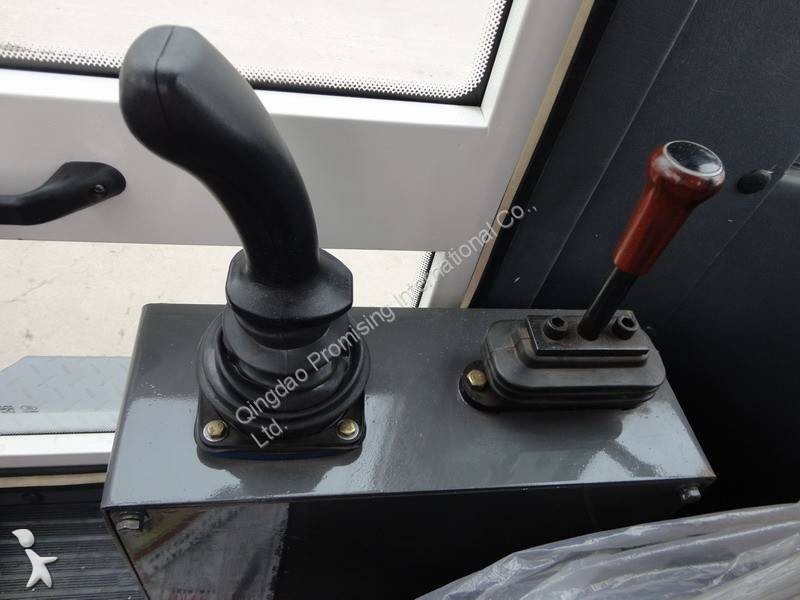

8. This compact wheel loader with 1.2T capacity can be optionally equipped with joystick (pilot control system) to make it easy to operate and increase the hydraulic performance of the whole machine;
9. Power system adopts CHANGCHAI 4L68 direct injection, environmentally friendly, 4-cylinder engine to make this 1.2 Ton small loader have strong power and high acceleration, which greatly increase its high working efficiency;
10. This compact loader with 1200kg capacity can be equipped with optional hydraulic quick hitch (quick coupler, quick attach, quick change), and this quick hitch enables this 1200kg mini loader to change quickly among multiple attachments, such as hay grapple, grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade, snow bucket, V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc.

Main Technical Parameters:
1 .Rated Load: 1200 kg
2. Total Weight: 3360 kg
3. Rated Bucket Capacity: 0.6 CBM
4. Max. Tractive Force: 30 KN
5. Max. Breakout Force: ≥ 32 KN
6. Max. Gradeability: 38°
7. Max. Dumping Height: 2800 mm
8. Max. Dumping Reach: 1000 mm
9. Raising Time: ≤ 5.0 s
10. Total Cycle Time: ≤ 9.5 s
11. Overall Dimensions (L x W x H): 5040*1680*2600 mm
12. Min. Turning Radius: 3200 mm
13. Engine Model: CHANGCHAI 4L68
14. Engine Type: Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Engine Rated Power: 37 kW
16. Engine Rated Speed: 2200 rpm
17. Engine Min. Fuel Consumption Ratio: ≤ 230 g/kW•h
18. Transmission System: ZL240 Integrated Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25 km/h
21. Model of Drive Axle: 50 Drive Axle
22 . Wheel Tread: 1400 mm
23. Wheel Base: 2150 mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16 Mpa
26. Fuel Tank Capacity: 75 L
27. Service Brake: Foot Pedal Single-line, Hydraulic, Expansion-shoe Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tire Type Specification: 12-16.5-12PR
30. Front Tire Pressure: 0.40 Mpa
31. Rear Tire Pressure: 0.35 Mpa
