Wiellader nieuw Dragon Machinery 1.5T CE Front Loader ZL15F

1.5 Ton small front loader, 1.5 T mini front loader, 1500kg front loader, 1500kg small loader, 1500kg mini loader, 1500kg compact loader, 1500kg front end loader, 1500kg small front loader, 1500kg mini front loader, CE approved 1.5T front wheel loader, CE certified 1.5 ton front end wheel loader, 1.5 ton articulated loader, 1.5T automatic transmission wheel loader, 1.5T wheel loader, 1.5ton wheel loader, 1.5 ton hydraulic wheel loader, 1.5 ton hydraulic loader, 1.5T compact wheel loader, 1500kg loaders, mini wheel loaders, new wheel loader, 4WD wheel loader, 1.5T CE wheel loader, 1.5T front wheel loader, 1.5 Ton front loader, 1.5 Ton small loader, 1.5 Ton mini loader, 1.5 Ton compact loader, 1.5Ton front end loader, 1.5 ton wheel loader with CE mark, CE front loader with 1.5T capacity, CE front end loader with 1.5 ton capacity, CE small loader with 1500kg capacity

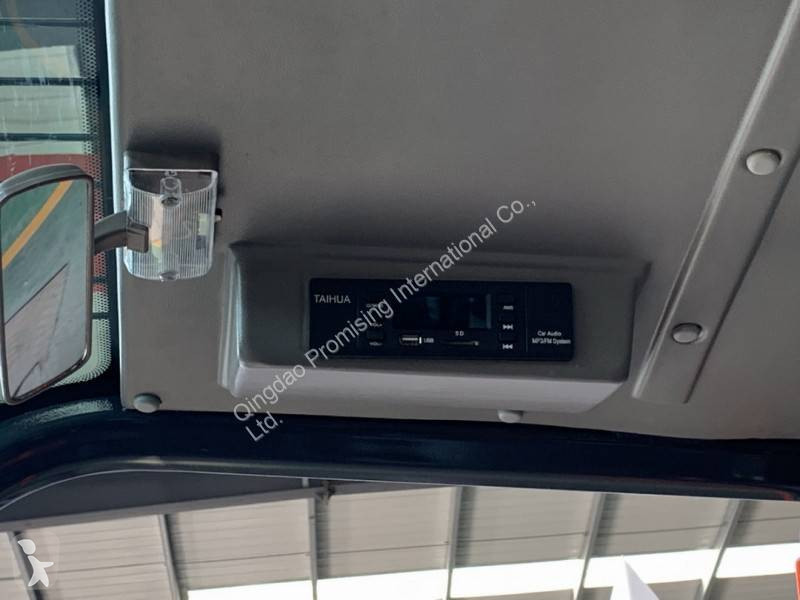

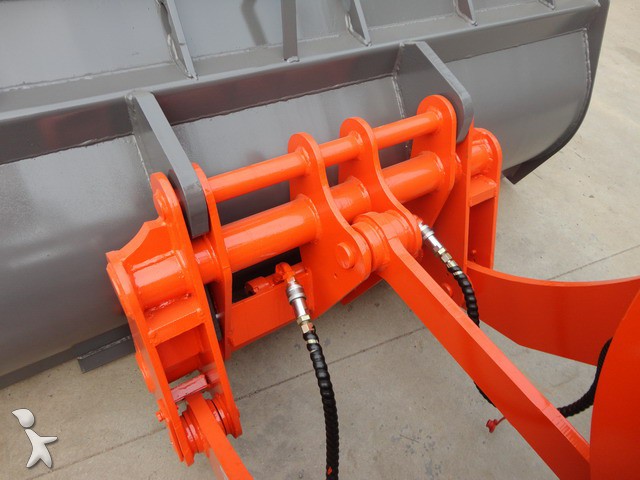

1.5 ton capacity small front loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera, top beacon, hydraulic joystick control, and hydraulic quick hitch; and optional air conditioner

Hydraulic Wheel Loader ZL15F
Technical Specifications
1. Rated Load: 1500kg
2. Operating Weight: 3500kg
3. Rated Bucket Capacity: 0.8CBM
4. Bucket Width: 1750mm
5. Max. Breakout Force: 42KN
6. Max. Tilt Angle of Cabin: 30deg.
7. Max. Dumping Height: 2650mm
8. Max. Dumping Reach: 860mm
9. Raising Time: < 4.5s
10. Min. Ground Clearance: 260mm
11. Overall Dimensions (L x W x H): 4870x1750x2650mm
12. Min. Turning Radius: 4400mm

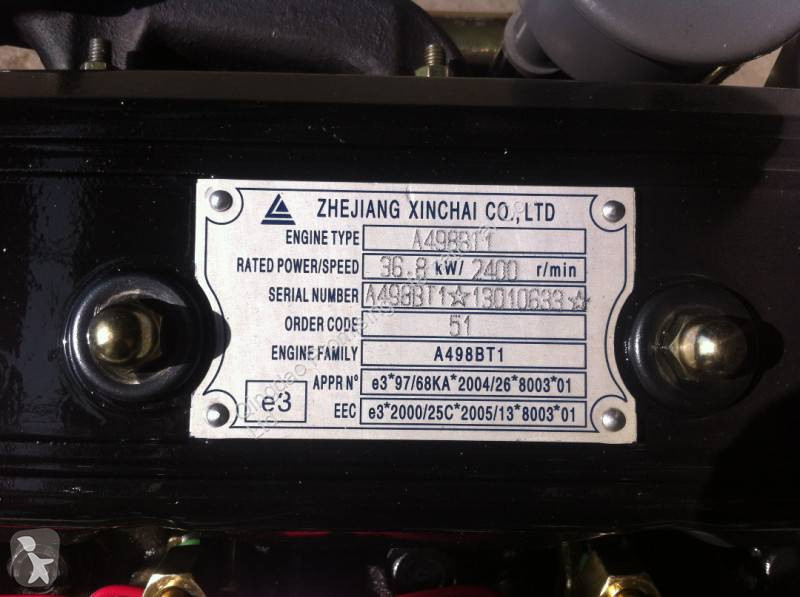

13. Engine Model: XINCHAI A498BT1 (EURO III)
14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Rated Engine Power: 36.8kW
16. Rated Engine Speed: 2650rpm
17. Min. Fuel Consumption Rate: 230g/kW.h
18. Transmission Mode: YJ240 Integrated Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25km/h
21. Mode of Axle: ISUZU Drive Axle
22. Wheel Tread: 1500mm
23. Wheel Base: 2100mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16Mpa
26. Hydraulic System Working Pump Type: Gear Pump
27. Service Brake: Foot Pedal Single-line, Hydraulic, Expansion-shoe Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tyre Type Specification: 12-16.5-12PR
30. Front Tyre Pressure: 0.40Mpa
31. Rear Tyre Pressure: 0.35Mpa

Note:
1. All photos are for reference only.
2. Machines shown may include optional parts.
3. All specifications and design characteristics are subject to change without prior notice.
