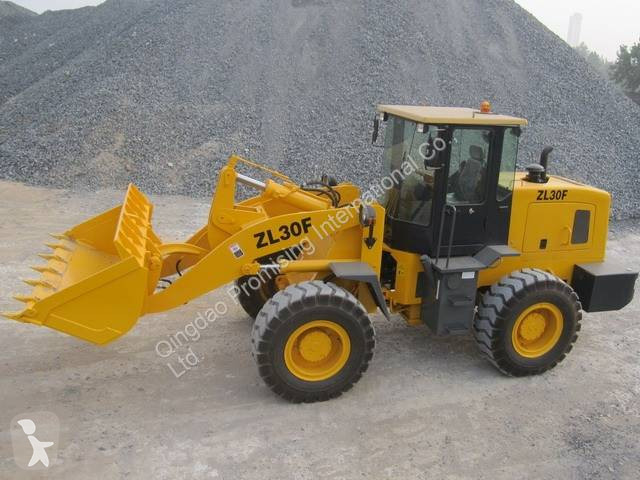

Wiellader nieuw Qingdao Promising 3.0T Capacity Wheel Loader ZL30F

3 ton capacity compact wheel loader with heavy-duty bucket with bolt on teeth, enclosed cabin with adjustable suspension seat and digital radio & MP3 player, hydraulic joystick, top beacon and air conditioner

Compact Wheel Loader ZL30F with CE
Technical Specifications
1. Rated Load: 3000kg
2. Operating Weight: 9600kg
3. Rated Bucket Capacity: 1.7CBM
4. Max. Tractive Force: ≥ 97KN
5. Max. Breakout Force: ≥127KN
6. Max Gradeability: 30Degree
7. Max. Dumping Height: 3100mm
8. Max. Dumping Reach: 1200mm
9. Raising Time: ≤6.0s
10. Total Cycle Time: ≤11s
11. Overall Dimensions (L x W x H): 7050x2430x3120mm
12. Min. Turning Radius: 5700mm
13. Engine Model: WEICHAI DEUTZ WP6G125E224
14. Engine Type: Vertical, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Rated Engine Power: 92kW
16. Rated Engine Speed: 2200rpm
17. Max Torque: 500 N•m
18. Min. Fuel Consumption Rate: ≤210g/kW.h
19. Transmission Mode: YJ315-X Hydraulic Torque Converter
20. Gearbox Mode: Countershaft Constant-Mesh Power Shift
21. Gear Shift: 4 Forward Shift, 2 Reverse Shift
22. Max. Speed: 40km/h
23. Main Reducing Mode of Drive Axle: Bevel Gear Grade 1 Reduction
24. Hub Reduction Mode of Drive Axle: Planetary Reduction Grade 1
25. Wheel Tread: 1800mm
26. Wheel Base: 2660mm
27. Drive Mode: 4-wheel Drive
28. Hydraulic System Working Pressure: 16.5Mpa
29. Fuel Tank Capacity: 156L
30. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Discc Brake on 4 Wheels
31. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
32. Tyre Type Specification: 17.5-25-20PR
33. Front Tyre Pressure: 0.40Mpa
34. Rear Tyre Pressure: 0.35Mpa


Optional Parts and Functions:
Canopy, Open Cabin, FOPS/ROPS, Reversing Camera, Hydraulic Quick Hitch, Extra Hydraulic Lines, LED Lights, and Floating Function, etc.


Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
