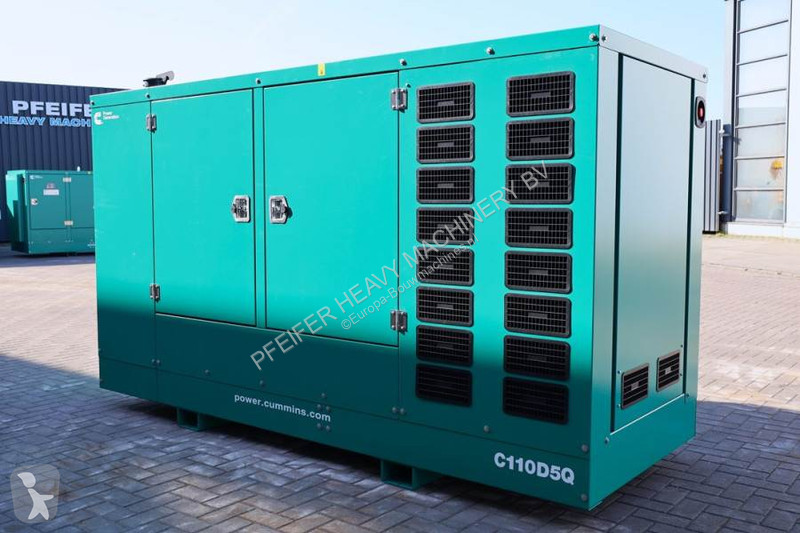

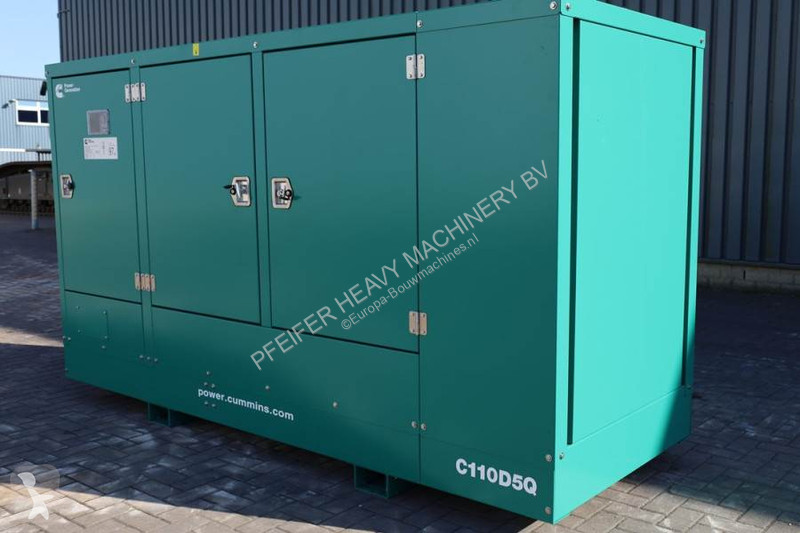

Aggregaat/generator tweedehands Cummins C110D5Q Declaration of Conformity, Diesel, 110kVA,

Field of application: Construction
Transport dimensions (LxWxH): 3.1x1.18x1.95
Please contact PFEIFER GROUP (Zie het telefoonnummer, Zie het telefoonnummer, ) for more information

Verwendungszweck: Bauwesen
Transportabmessungen (L x B x H): 3.1x1.18x1.95
Wenden Sie sich an PFEIFER GROUP (Zie het telefoonnummer, Zie het telefoonnummer, ), um weitere Informationen zu erhalten.

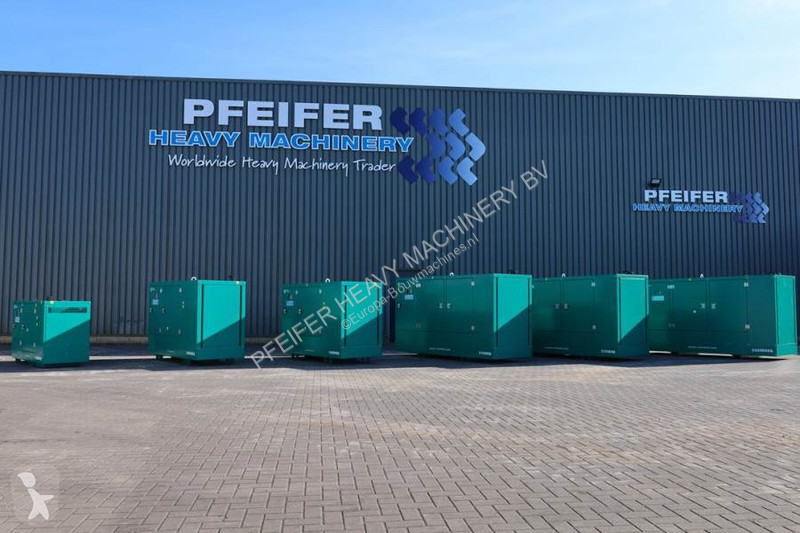

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C110D5Q
Manuf. Year: 2025
Serial nr: J24I439847
Fuel: Diesel

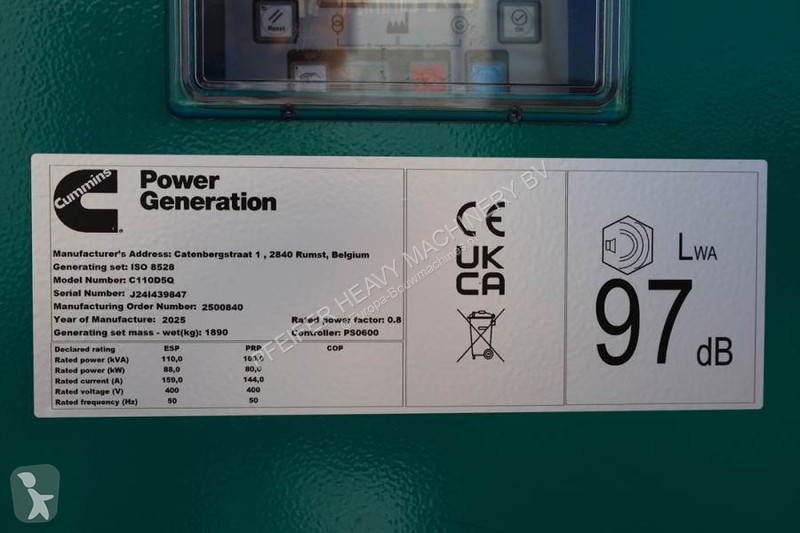

Generator Set

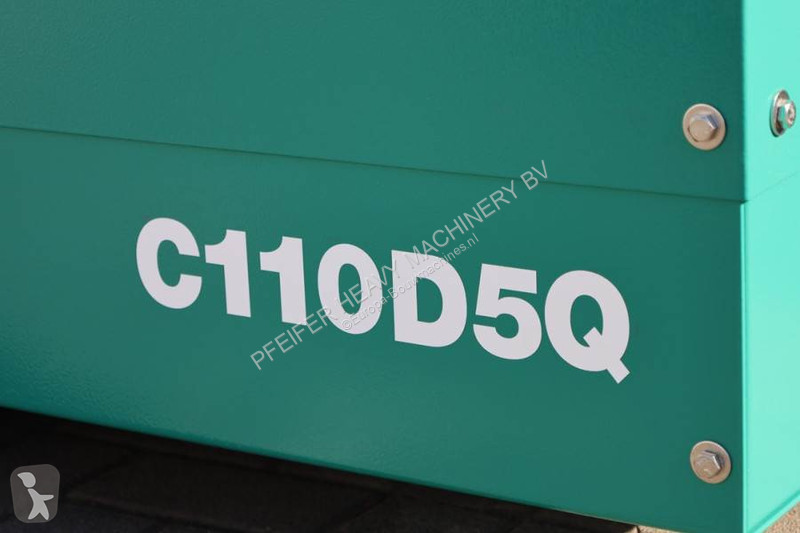

Model: C110D5Q

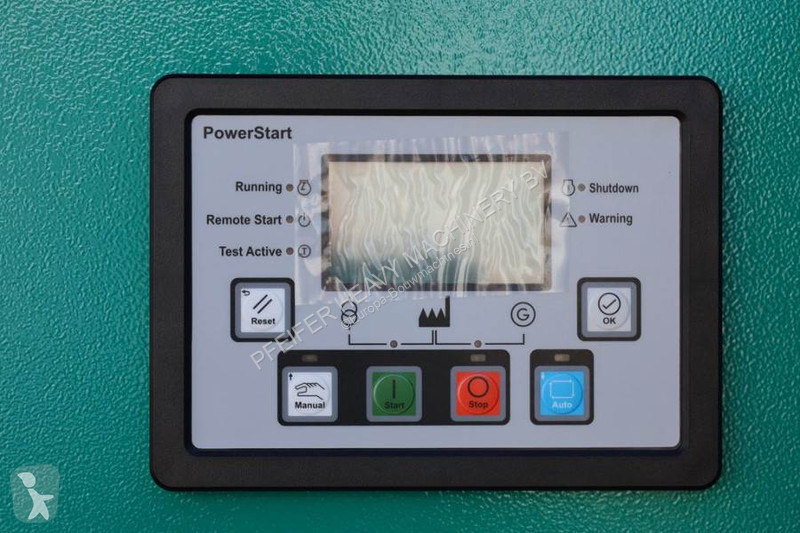

Controller: PowerStart 600

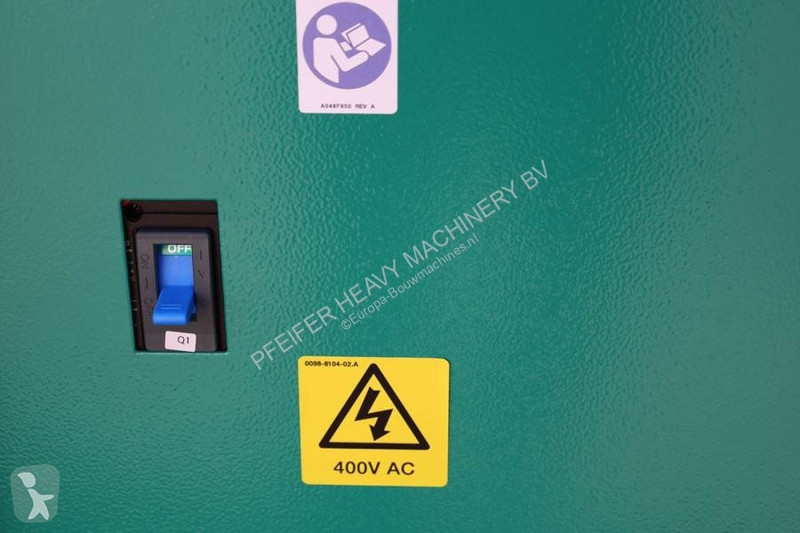

Voltage: 400/230V
Frequency: 50Hz
ESP Power: 110 kVA / 88 kW
PRP Power: 100 kVA / 80 kW
Alternator: Stamford UC274C

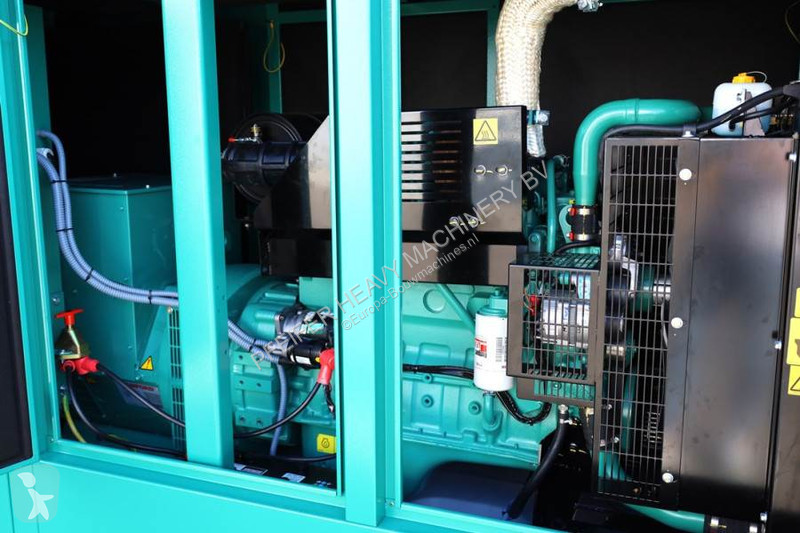

Engine
Manufacturer: Cummins

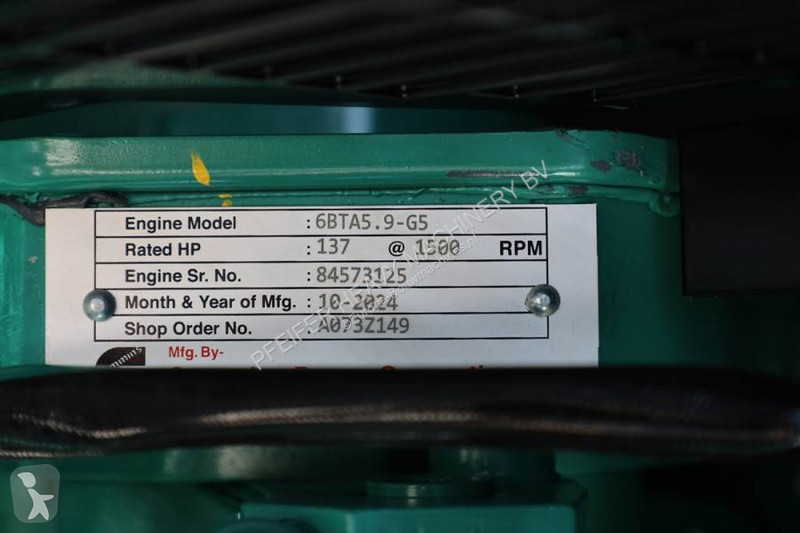

Model: 6BTA5.9-G5

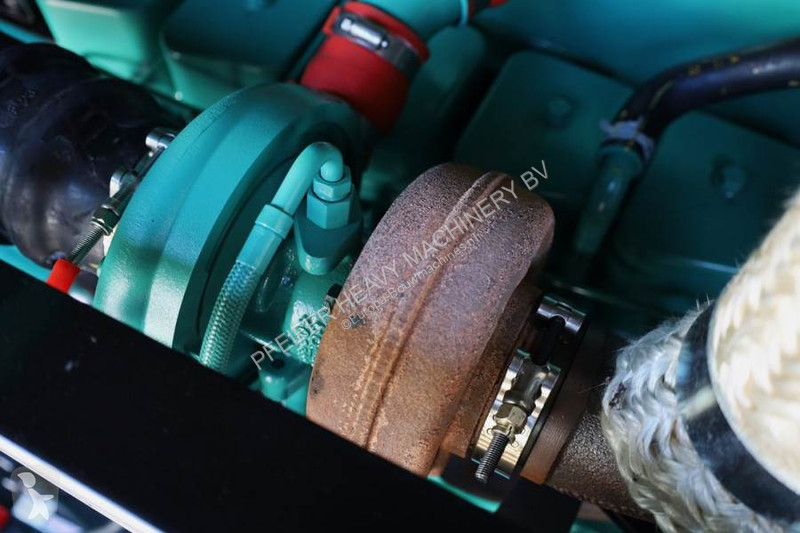

Design: 6-cycle, in-line, turbocharged after-cooled
Displacement: 5.9 L
Rated Speed: 1500 RPM
Fuel System: Direct injection
Cooling System: 50°C ambient radiator
Lube Oil Capacity: 14.3L (standard) / 16.4L (total system)

Fuel & Efficiency
Fuel Tank Capacity: 400L
Autonomy (@ 75% PRP load): 21 hours
Fuel Consumption (liters per hour):
25% load: 7.4
50% load: 12.9
75% load: 19.4
100% load: 27.2

Battery System
Design: Lead-acid, flooded/SLI technology
Voltage: 12V
Capacity: 140 Ah
Battery Charger: Standard 12/24VDC, 4A

Alternator
Design: Brushless, single bearing
Insulation System: Class H
Excitation Type: Self-excited
Voltage Regulation: ±1%
Frequency Regulation: Isochronous

Exhaust & Cooling
Exhaust Gas Flow (@ rated load): 21.4 m³/min
Exhaust Gas Temperature: 533°C
Max Exhaust Back Pressure: 10.25 kPa
Cooling System Airflow: 3.44 m³/sec

Dimensions & Weight
LxWxH: 3.100mm x 1.180mm x 1.950mm
Wet Weight (kg) 1.890

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
