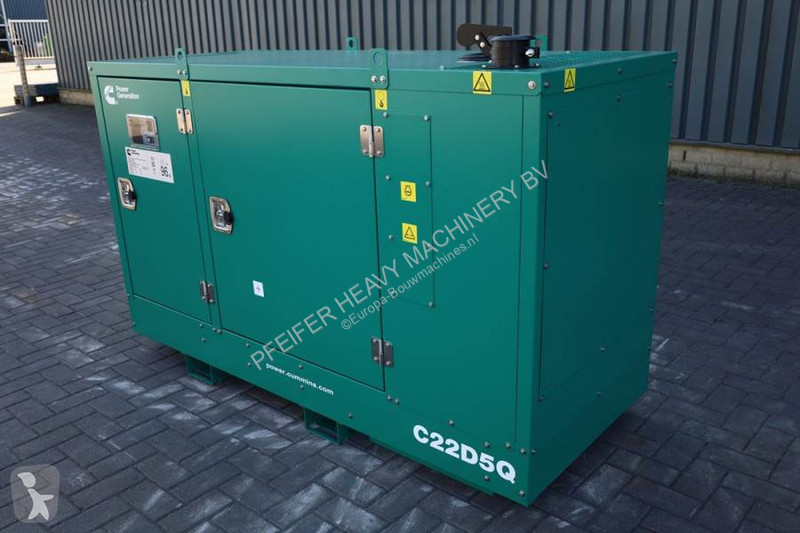

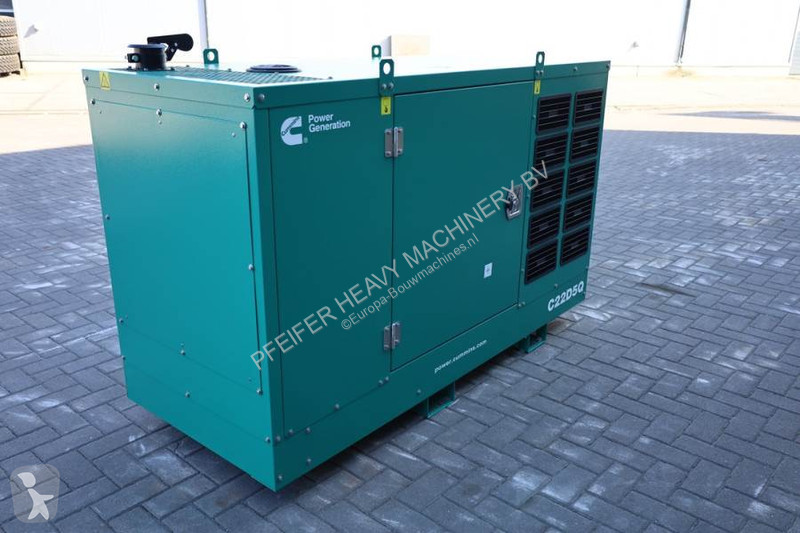

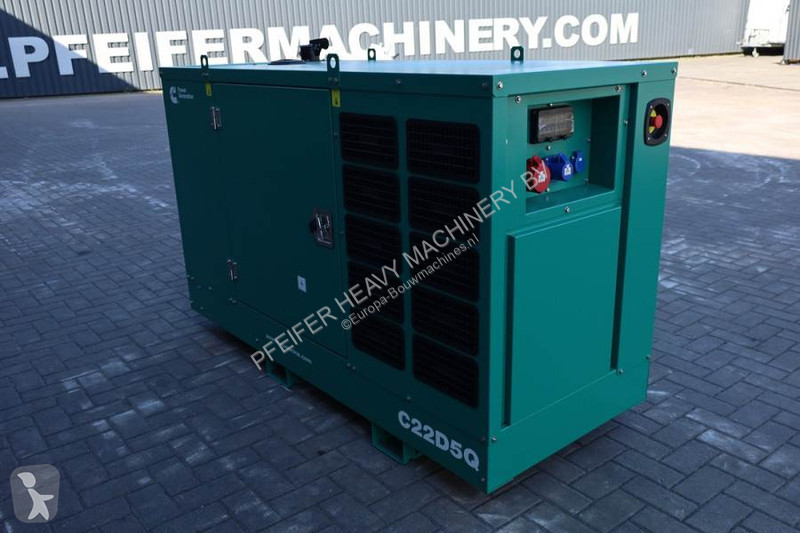

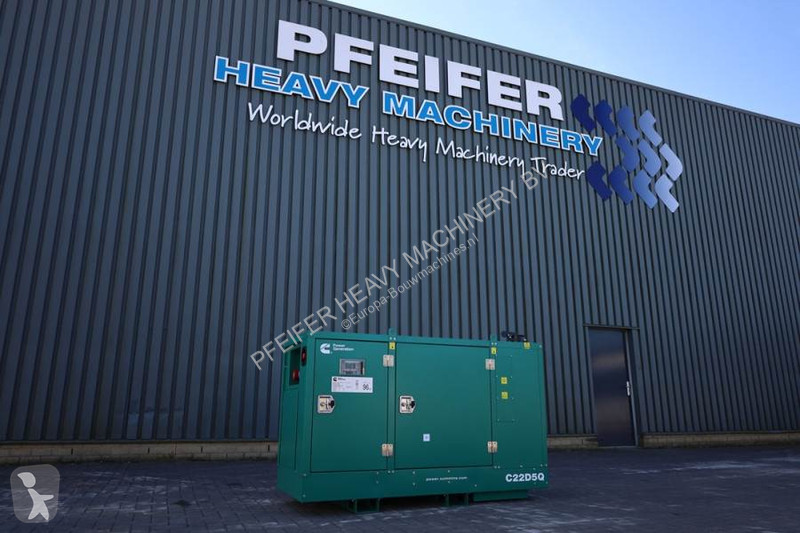

Aggregaat/generator tweedehands Cummins C22D5Q Declaration of Conformity, Diesel, 22kVA, A

Field of application: Construction
Transport dimensions (LxWxH): 1.96x0.82x1.28
Please contact PFEIFER GROUP (Zie het telefoonnummer, Zie het telefoonnummer, ) for more information

Verwendungszweck: Bauwesen
Transportabmessungen (L x B x H): 1.96x0.82x1.28
Wenden Sie sich an PFEIFER GROUP (Zie het telefoonnummer, Zie het telefoonnummer, ), um weitere Informationen zu erhalten.

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C22D5Q
Manuf. Year: 2025
Serial nr: D23I155909
Fuel: Diesel

General
Model: C22D5Q

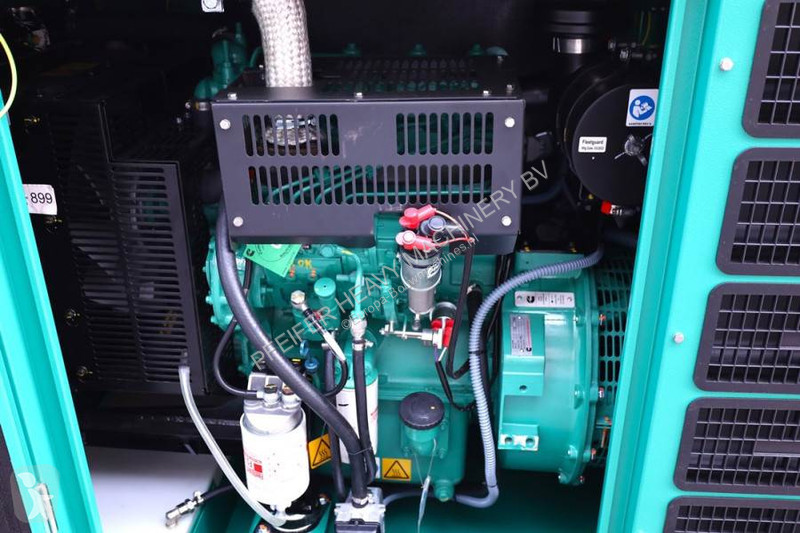

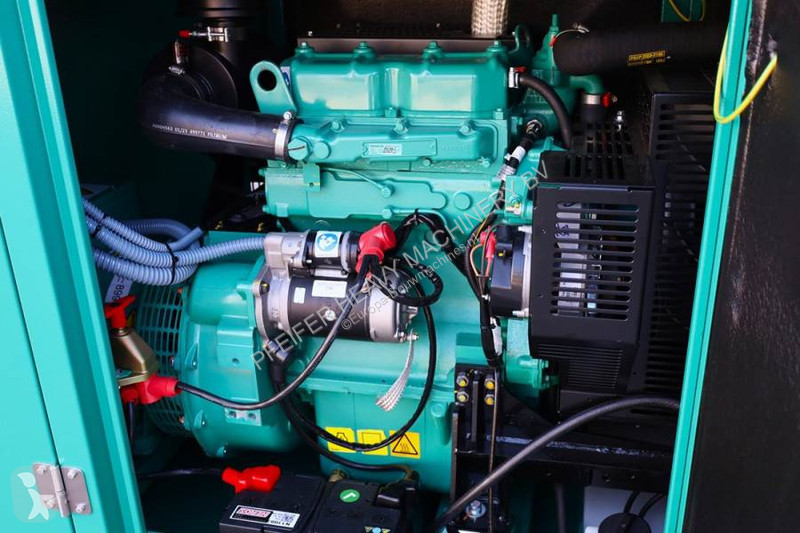

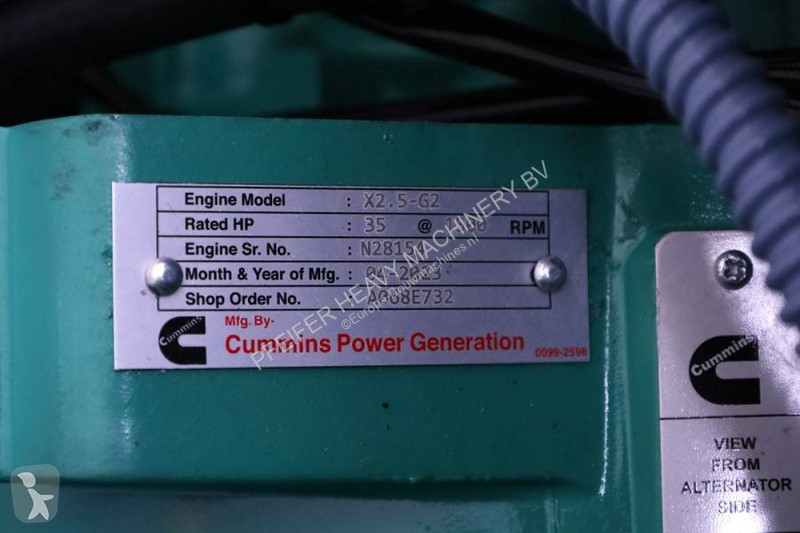

Engine: Cummins X2.5-G2

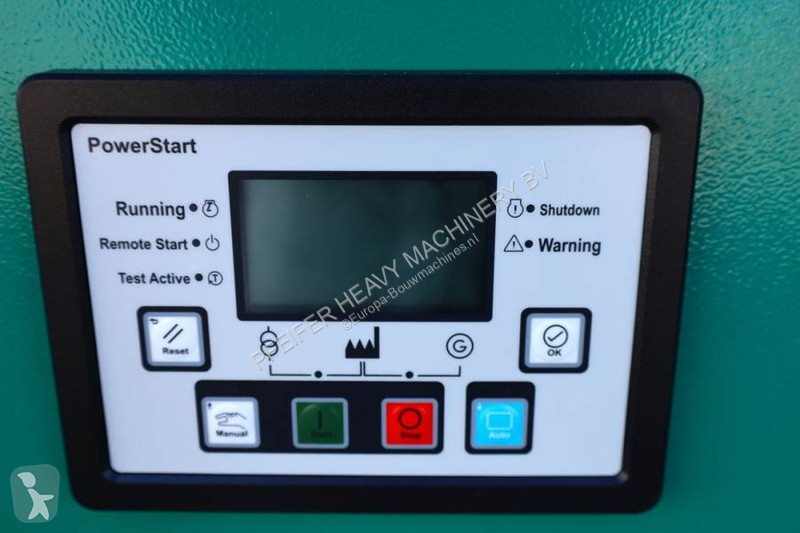

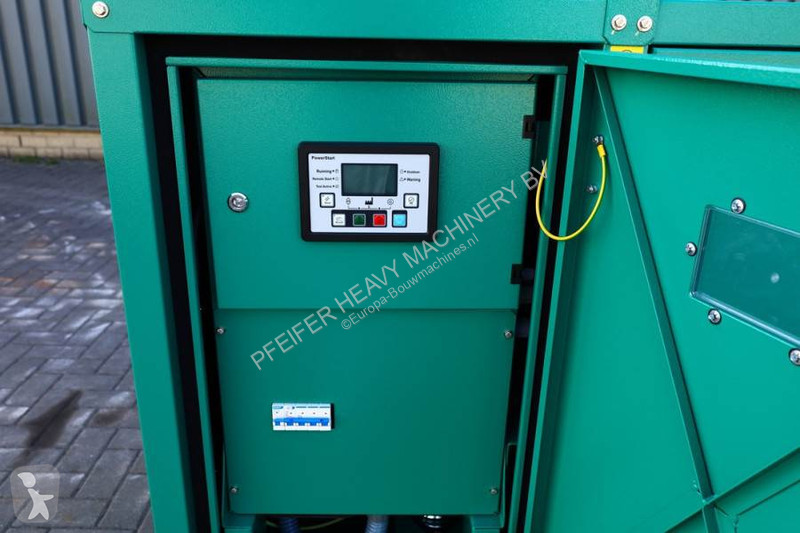

Controller: PowerStart PS0600
Alternator: Stamford S0L2-G1
Phases: 3-phase
Voltage: 400/230 V
Frequency: 50 Hz
ESP (Standby Power): 22 kVA / 18 kW
PRP (Prime Power): 20 kVA / 16 kW
Current (ESP): 31.8 A

Engine Performance
Displacement: 2.5 litres, 3-cylinder inline
Speed: 1500 rpm
Gross engine power: 27 kWm (ESP), 24.37 kWm (PRP)
Oil capacity: 7.3 / 8.0 litres
Coolant capacity: 15 litres
Air intake: 2.30 m³/min
Exhaust gas flow: 127 kg/h at 660°C
Max. back pressure (exhaust): 3.38 kPa

Fuel Consumption
Fuel tank capacity: 55 litres
Autonomy @ 75% PRP: 13 hours
Fuel consumption at full load (PRP): 5.2 l/h
Max. fuel flow: 40 l/h

Electrical System
Starting voltage: 12 VDC
Battery: 12V, 75 Ah
Battery charger: 4 A, 12/24 VDC

Dimensions & Weight
LxWxH: 1.960mm x 0.820mm x 1.285mm
Wet Weight (kg) 757

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors

Toepassingsgebied: Bouw
Afmetingen (LxBxH) (m): 1.96x0.82x1.28
Neem voor meer informatie contact op met PFEIFER GROUP (Zie het telefoonnummer, Zie het telefoonnummer, )
